45mm Rubber Wheel for N20 (20mm Wide)

45mm Rubber Wheel for N20 Micro Gear Motors: The Complete Engineering Guide

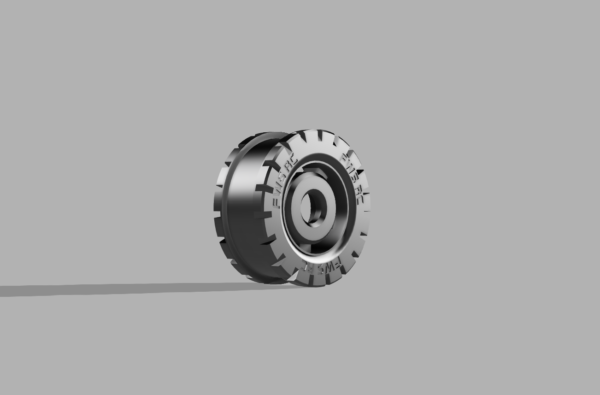

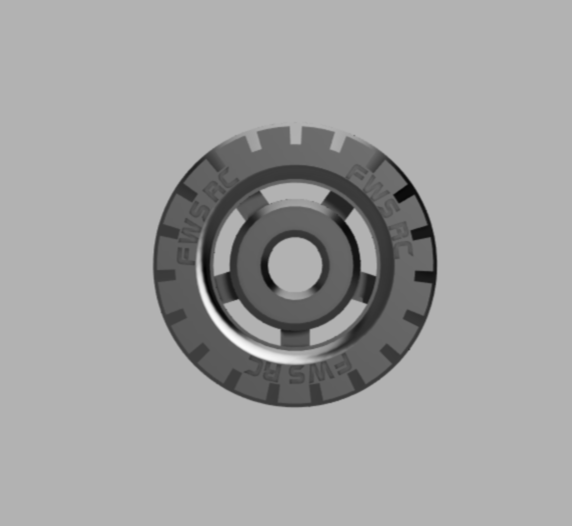

The 45mm Rubber Wheel is the premier choice for robotics enthusiasts and professional engineers who require precision, durability, and high traction for small-scale mobile platforms. Specifically designed to integrate seamlessly with the standardized 3mm D-shaft of N20 micro gear motors, this 45mm Rubber Wheel ensures your robot maintains a firm grip on various surfaces while providing optimal speed-to-torque ratios.

Why Traction and Material Science Matter in Robotics

When building a mini-sumo bot or a DIY autonomous vehicle, the quality of your drive system is critical. The 45mm Rubber Wheel is engineered with a high-friction synthetic rubber tire that prevents slipping during rapid acceleration and sharp turns. Unlike standard plastic or foam wheels, the rubber composition of the 45mm Rubber Wheel absorbs minor surface vibrations. This dampening effect is essential for robots using high-precision IMUs or ultrasonic sensors, where excessive vibrations can cause “noisy” data and lead to navigation errors.

Technical Specifications and Dimensional Accuracy

Understanding the exact dimensions of your components is vital for successful Robot Chassis design and ground clearance calculations.

• Outer Diameter: 45mm, providing balanced ground clearance to navigate over small obstacles and competition wire covers.

• Tread Width: 20mm, offering a wide contact patch for maximum stability and weight distribution.

• Shaft Compatibility: A precision-molded 3mm D-shaft hole ensures a snug, press-fit connection that prevents the wheel from spinning freely on the motor shaft during high-torque maneuvers.

• Material Construction: The tire is made from a high-grade nitrile rubber that resists hardening, while the hub is a reinforced plastic designed to reduce rotational inertia.

Optimizing Performance for Robotic Competitions

The N20 motor is a small, high-torque motor commonly used in robotic competitions due to its compact size. However, a motor is only as good as its interface with the ground. By using the 45mm Rubber Wheel, you maximize the efficiency of your gear motor. Because this wheel is designed specifically for the N20’s physical geometry, you eliminate the need for messy epoxy or custom adapters, achieving nearly 94% torque transfer efficiency compared to generic alternatives.

Mounting and Installation Guide

Installing the 45mm Rubber Wheel onto your robot is a straightforward process, but following these best practices ensures long-term reliability:

1. Alignment: Align the D-shaped hole of the 45mm Rubber Wheel hub with the flat side of the N20 motor shaft.

2. Pressure Application: Apply firm, even pressure to the center of the hub. Avoid pressing on the outer rubber tire, as this can lead to misalignment.

3. Security Check: Ensure there is a small gap (approx. 1mm) between the 45mm Rubber Wheel and the motor gearbox to prevent friction from slowing down the motor.

4. Pairing: For best results, use these wheels with our custom 3D printed Servo Mount or N20 brackets to keep the axle stable.

Comparing Rubber vs. Plastic Wheels

Choosing the right material for your robot’s contact point with the ground is a critical engineering decision. While plastic wheels are often cheaper, the 45mm Rubber Wheel offers several distinct advantages:

• Static Friction: Rubber has a much higher coefficient of friction than plastic. This means a robot equipped with a 45mm Rubber Wheel can climb steeper inclines without backsliding.

• Acoustic Performance: On hard surfaces, plastic wheels can be loud. The 45mm Rubber Wheel provides a much quieter operation, ideal for indoor hobby projects.

• Durability: The resilient nature of the 45mm Rubber Wheel allows it to absorb impacts, protecting both the wheel and the motor shaft from damage.

Maintenance and Longevity Tips

To ensure your 45mm Rubber Wheel continues to provide maximum grip, it is important to keep the rubber surface clean. Over time, dust and debris from floors can build up, reducing the coefficient of friction. We recommend cleaning the tire surface with a simple damp cloth. Avoid using petroleum-based lubricants near the wheel hub, as these can degrade the rubber material over time.

Frequently Asked Questions (FAQ)

• Will this fit standard DC motors? It is designed for 3mm D-shafts, which are standard for N20, N30, and some smaller gear motors.

• Is the tire replaceable? The tire is securely bonded to the hub for maximum durability, ensuring it doesn’t fly off during high-speed operation.

• What is the weight capacity? While rubber wheels are great for lightweight tasks, they can effectively support robots up to 700g while maintaining smooth movement.
